Automatic Premium Quality Free Pallet Fly Ash Block Making Machine YXMT12-25

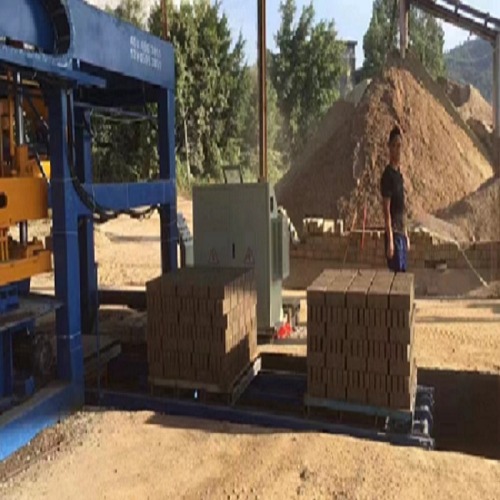

"Free pallet" means the machine operates without the need for wooden or steel pallets to carry the blocks during the curing process. The blocks are ejected directly onto a curing rack or floor. This eliminates the significant recurring cost of purchasing, maintaining, and replacing pallets, which in high-volume projects can save you tens of thousands of dollars annually. It also reduces labor costs associated with pallet handling and stacking.

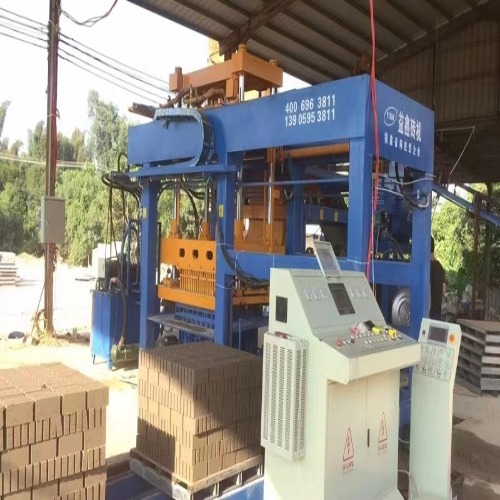

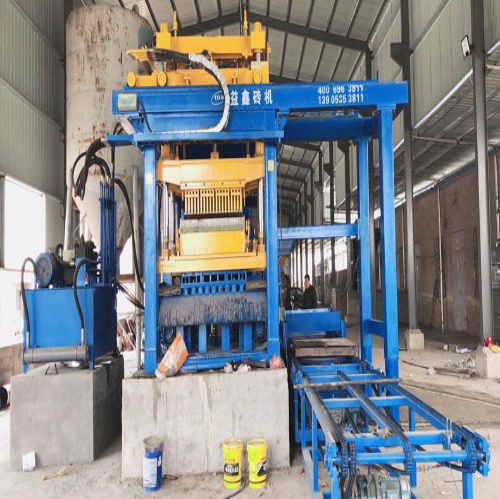

The YXMT12-25 is engineered with a high-pressure hydraulic system and a servo-controlled vibration system. This combination allows it to adapt to a wide range of mix designs, from high fly ash content to crushed stone aggregates. The vibration frequency and pressing force are adjustable via the PLC control system, ensuring consistent block density and strength even if your raw material quality varies slightly, as long as you maintain a consistent water-to-cement ratio.

We offer a standard 24-month warranty on the main structure and hydraulic system, and a 12-month warranty on electrical components and the PLC. More importantly for project timelines, we provide on-site commissioning by our engineers and a 48-hour response guarantee for any critical service requests.

That is a very important question. For the standard YXMT12-25, the dimensions are approximately 4880 mm in length, 3860 mm in width, and 3090 mm in height. The gross weight for the main machine is around 12.5 metric tons. This allows it to be shipped in a standard 40-foot high-cube container .

Yes, we provide layout customization. If you have space limitations, we can redesign the arrangement of the conveyor system, pallet feeder, and stacker to fit your facility. We will work with your facility layout plan to ensure smooth integration without sacrificing automation efficiency.
