Name: Factory Certification Hollod Paver Block Making Machine QT10-15
Availability: InStock

Factory Certification Hollod Paver Block Making Machine QT10-15

Reference video of QT10-15 holland paver block making machine

The QT10-15 block making machine uses vibration and pressure to shape concrete from the storage hopper into durable blocks. It works with standard concrete to produce blocks of any required form or size. This machine is ideal for factory certification, ensuring high output and consistent quality. It supports diverse applications such as paving, hollow blocks, and interlocking designs. Efficient, reliable, and versatile, the QT10-15 is essential for modern block production lines.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Hollow Block	400200200	10	1800	14400-19200
Solid Block	24011553	51-56	13440	74880-99840
Holland Block	20010060	35	6300	50400
Zigzag Block	225112.560	30	5400	43200

Product Detail

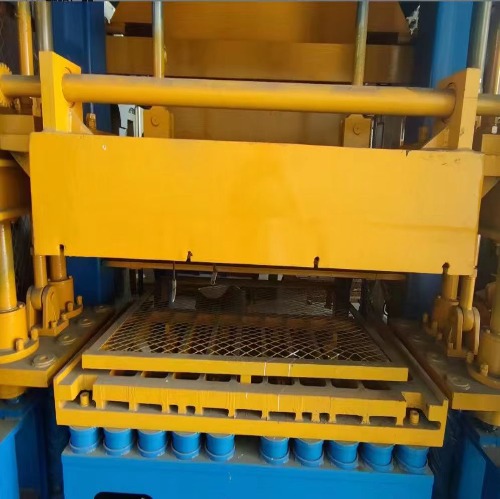

The cast tamper head on the QT10-15 paver block machine ensures superior pre-compaction during production. It applies consistent, high-force pressure to each mold cycle, eliminating air voids and creating denser, stronger blocks. The heavy-duty cast design guarantees extended service life under continuous operation. By delivering a perfectly flat and smooth surface finish, it reduces cement paste waste and lowers rejection rates. This component also minimizes vibration noise and enhances block uniformity, making it essential for achieving high-quality Hollod paver blocks with efficient, reliable factory certification standards.
The stirring teeth on the Factory Certification Hollod Paver Block Making Machine QT10-15 are engineered for superior mixing efficiency and durability. Made from high-strength wear-resistant alloy, they ensure consistent homogenization of raw materials like concrete and aggregates. Their optimized design reduces friction resistance, lowers energy consumption, and extends service life. These teeth prevent material clumping, improve blend uniformity, and enhance overall block strength.
The guiding system of the QT10-15 ensures precise alignment and stable movement of all moving parts during block production. It uses heavy-duty linear guides and wear-resistant rails to reduce friction and mechanical play. This design improves molding accuracy, extends machine life, and supports consistent block density. The system operates smoothly under high vibration and continuous load, requiring minimal maintenance. It directly contributes to higher output quality and lower downtime, making the machine reliable for long-term factory certification operations.

Block Display

The QT10-15 factory certified machine supports production of various concrete blocks. It efficiently manufactures external and internal wall blocks, PC stone permeable bricks, and flower wall blocks. Floor blocks, dike blocks, chain blocks, curbs, and other special shapes are also achievable. The versatile design ensures consistent quality and high output for diverse construction needs. Ideal for urban development, landscaping, and erosion control projects.

Exhibition Experience

The QT10-15 block making machine combines advanced hydraulic technology with user-friendly controls, reflecting a people-oriented design that simplifies operation and maintenance. Its high-capacity production of hollow pavers and solid blocks meets diverse construction needs, supported by a customer-oriented approach offering tailored solutions. With energy-efficient motors and durable molds, it reduces waste and downtime.

FAQ

1.How long does the product production cycle typically take?

Factory Certification Hollod Paver Block Making Machine QT10-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery Factory Certification Hollod Paver Block Making Machine QT10-15?

The raw materials utilized in the production process of Factory Certification Hollod Paver Block Making Machine QT10-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for the Factory Certification Hollod Paver Block Making Machine QT10-15 after mold confirmation?

The estimated date of shipment for the Factory Certification Hollod Paver Block Making Machine QT10-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5. Can the Factory Certification Hollod Paver Block Making Machine QT10-15 be equipped with an additional device to produce various types of colored paving blocks?

Yes, the Factory Certification Hollod Paver Block Making Machine QT10-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks.
