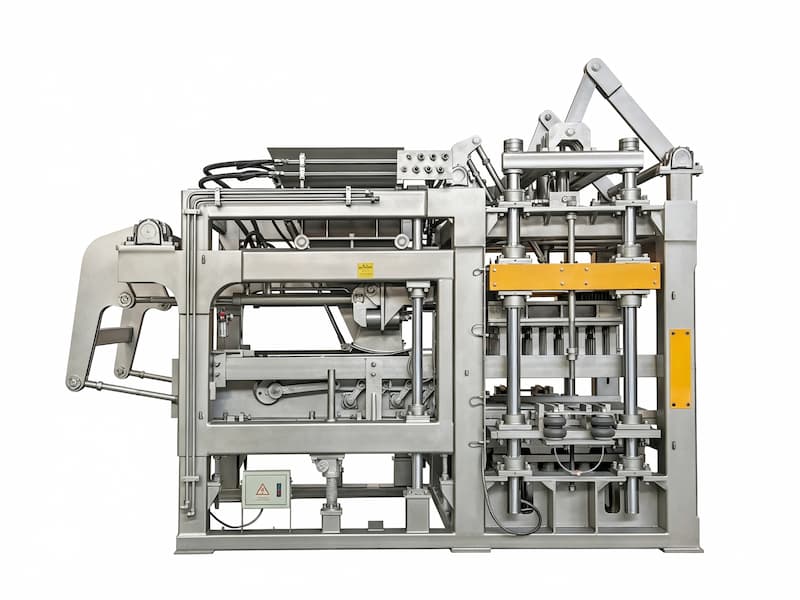

Factory Designed Interlocking Block Making Machine QT15-15
The cast vibration table of the QT15-15 interlocking block making machine is engineered for high-density block formation. It utilizes a dual-shaft eccentric vibration system that delivers powerful, uniform compaction across the entire mold. This direct-drive design transfers maximum energy to the concrete mix, eliminating air voids and ensuring consistent block strength and dimensional accuracy. The heavy-duty construction withstands continuous operation, while the low-maintenance bearings reduce downtime. By achieving superior compaction, the vibration table produces dense, durable interlocking blocks with excellent surface finish, making it ideal for large-scale, professional production facilities.
Model :
Yixin Machinery QT15-15Machine Dimension :
11500*4750*2800Pallet Size :
1350*1100mmCycle Time :
15-20（S）Vibration Force :
105(KN)Vated Pressure :
21（mpa）Power :
64(KW)Factory Designed Interlocking Block Making Machine QT15-15
Reference video of QT15-15 Interlocking block making machine

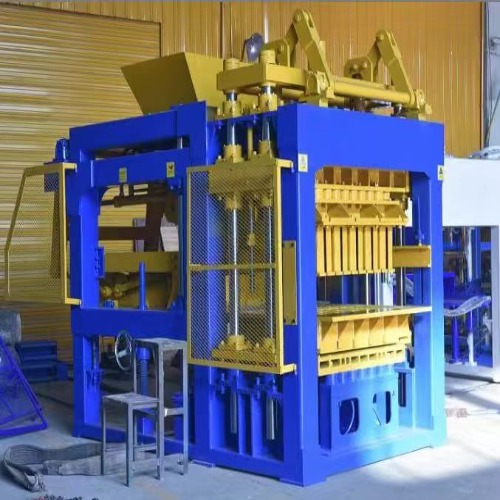

The flexible arm pushing system on the QT15-15 interlocking block making machine is engineered for efficient and even raw material distribution into the mold. Its articulated design adapts to varying material consistencies, preventing blockages and ensuring complete cavity fill. This mechanism reduces waste and compaction inconsistencies by sweeping excess material smoothly across the mold box. Constructed for heavy-duty cycles, the flexible arm minimizes maintenance needs while boosting throughput. By enabling uniform feeding, it directly contributes to producing high-strength, dimensionally accurate interlocking blocks with superior surface finish in every cycle.
Production Data
| Block Type | Specification（mm） | Qty/Palllet | Qty/Hour | Qty/Hours |
| Hollow Block | 400*200*200 | 15 | 2700 | 20000-23000 |
| Solid Block | 240*115*53 | 84 | 20160 | 120000-140000 |
| Holland Block | 200*100*60 | 55 | 9900 | 79200 |
| Zigzag Block | 225*112.5*60 | 40 | 7200 | 57600 |
Product Detail
Block Display
The QT15-15 interlocking block making machine offers exceptional versatility, capable of producing any shape of block required using only common concrete. By simply changing molds, the same equipment can manufacture interlocking pavers, hollow blocks, solid bricks, curbstones, and specialized landscaping elements. This flexibility eliminates the need for multiple machines or custom material formulations. The hydraulic system delivers consistent pressure and vibration, ensuring dense, durable blocks regardless of shape complexity. For contractors and manufacturers seeking to diversify product lines without significant capital investment, this machine transforms standard concrete into an unlimited variety of high-quality masonry products.
The hydraulic unit of the QT15-15 interlocking block making machine delivers reliable hydraulic power to drive every action of the equipment. It supplies consistent pressure and flow to enable smooth operations including mold clamping, material pressing, and product ejection. Designed for heavy-duty performance, this unit ensures high forming force and fast cycle response, directly improving block density and production efficiency. The integrated system reduces mechanical wear and supports continuous, automated production.
| FAQ |
|
1.How long does the product production cycle typically take? Factory Designed Interlocking Block Making Machine QT15-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements. |
|
2. How many days to change vibration box oil ,what kind of oil can be used inside? The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil. |
|
3.What are the raw materials used in the production process of Yixin Machinery Factory Designed Interlocking Block Making Machine QT15-15? The raw materials utilized in the production process of Factory Designed Interlocking Block Making Machine QT15-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What is the estimated date of shipment for the Factory Designed Interlocking Block Making Machine QT15-15 after mold confirmation? The estimated date of shipment for the Factory Designed Interlocking Block Making Machine QT15-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications. |
|
5. Can theFactory Designed Interlocking Block Making Machine QT15-15 be equipped with an additional device to produce various types of colored paving blocks?
Yes, the Factory Designed Interlocking Block Making Machine QT15-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks. |
