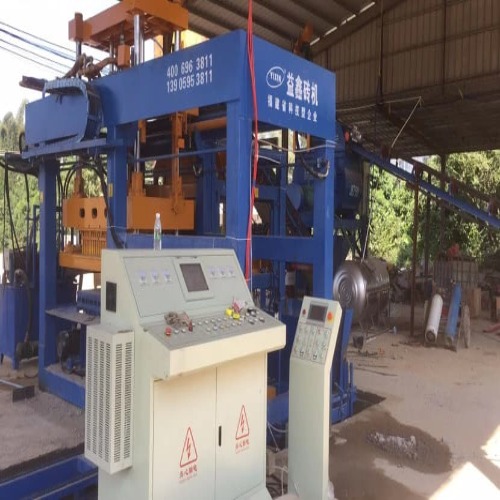

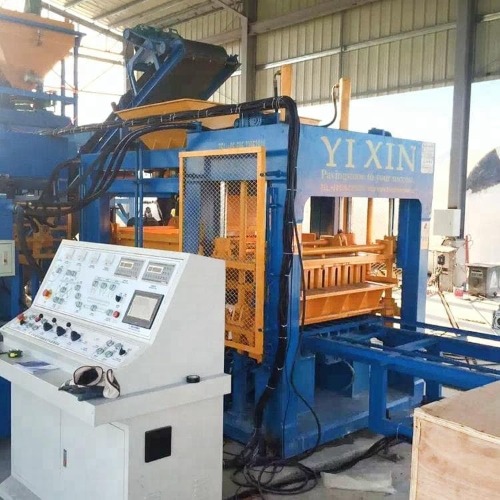

The YXMT18-25 Large-scale Free Pallet Dike Brick Moulding Machine by Yixin Machinery features advanced electronic control technology for reliable operation. With a high vibration frequency and strong vibration force, it ensures strong finished bricks meeting international standards. The machine supports custom molds, has a molding cycle of 18-25s, and includes a 1-year warranty, offering high efficiency and cost-effectiveness for brick production.
Model :
Yixin Machinery YXMT18-25Machine Dimension :
5880*4660*3090(MM)Pallet Size :
1350*1350(MM)Cycle Time :
18-25(S)Vibration Force :
55-180(KN)Vated Pressure :
21(MPA)Power :
58(KW)Free Pallet Dike Brick Moulding Machine YXMT18-25
Reference video of Free Pallet Dike Brick Moulding Machine YXMT18-25:
This reference video showcases the YXMT18-25 Free Pallet Dike Brick Moulding Machine, a high-performance hydraulic press designed for producing dike (levee) bricks and various interlocking blocks. Featuring a free pallet system, it eliminates the need for wooden pallets, reducing production costs and increasing efficiency.
Production Data
| Block Type | Specification（mm） | PCS/Mould | S/Mould | 8 hours/class output |
| Hollow Block | 390*190*190 | 18 | 18-25 | 20736-28800 |
| Solid Brick | 240*115*53 | 105 | 18-25 | 121680-16800 |
| Hollow Block | 240*115*90 | 50 | 18-25 | 57600-80000 |
| Solid Brick | 150*100*100 | 96 | 18-25 | 110592-153600 |
Product Details

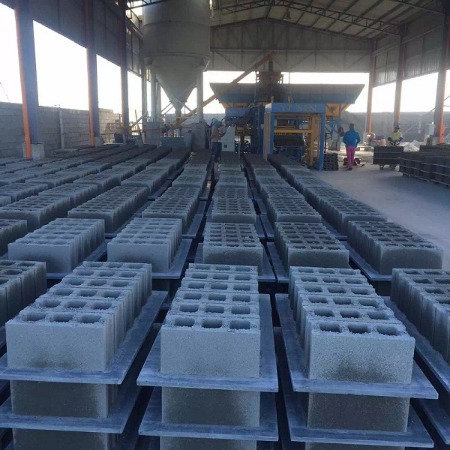

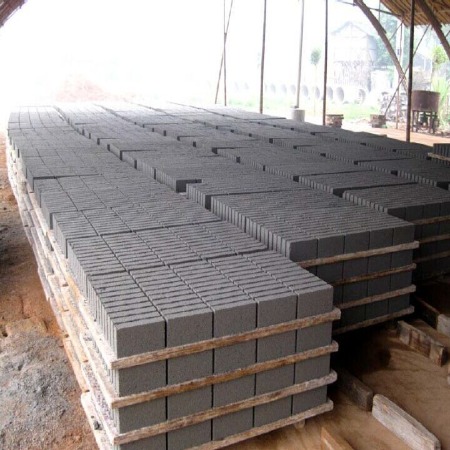

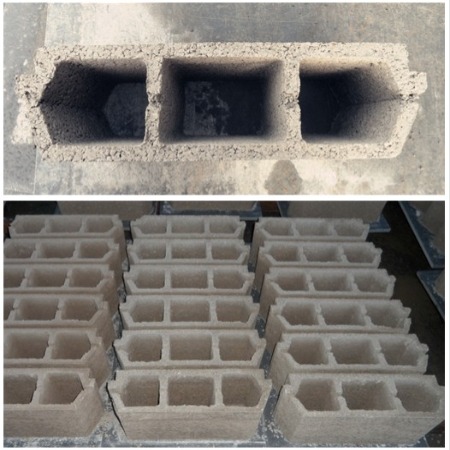

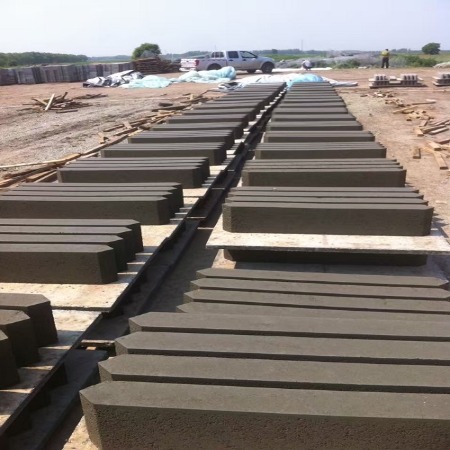

Block Display
This block display highlights the exceptional output quality of the YXMT18-25 Free Pallet Dike Brick Moulding Machine. Featuring a free pallet system, it produces high-precision dike bricks, interlocking blocks, and slope protection units with superior dimensional accuracy and uniform density.
Customer Access

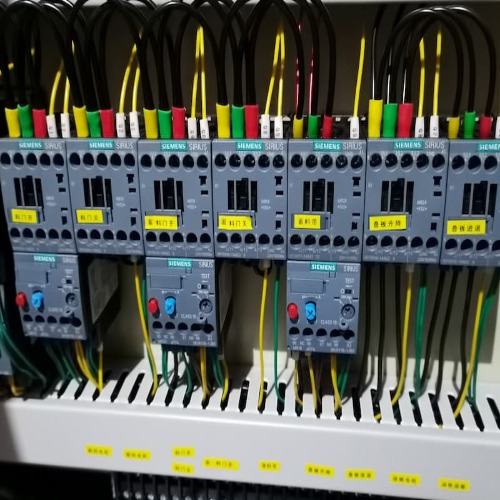

The customer access design of the YXMT18-25 Free Pallet Dike Brick Moulding Machine prioritizes operator convenience and maintenance efficiency. Featuring wide safety doors, quick-release panels, and strategically positioned access points, it allows easy entry to the hydraulic system, PLC control cabinet, vibration unit, and mold area.
| FAQ |
|
1.Does the YXMT18-25 machine support customization? Yes, we support customization. Options include mold designs for various dike brick shapes and sizes, hydraulic system configurations, control systems (PLC/automatic/semi-automatic), voltage specifications, and machine color. Customized molds for specific project requirements are also available. |
|
2.How many days to change vibration box oil ,what kind of oil can be used inside? The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil. |
|
3.What are the shipping methods?
We offer multiple shipping options: By sea: Most common for large machinery; shipped in 40ft or 45ft containers with professional export packaging.
|
|
4.What is the warranty period? We offer a standard 12-month warranty for the machine, covering manufacturing defects. Extended warranty and maintenance packages are available upon request. |
|
5.Does the machine come with installation and training support? Yes, we provide on-site installation guidance, operator training, and after-sales technical support to ensure smooth startup and ongoing operation. Remote troubleshooting, spare parts supply, and maintenance services are also available. |
