The QT8-15 features an imported high-efficiency hydraulic proportional system built with pure components. This advanced system ensures precise control over flow and pressure, significantly boosting operational efficiency while reducing energy consumption. The pure components enhance durability and response accuracy, minimizing waste and heat generation. As a result, the machine delivers faster cycle times, lower electricity use, and consistent block quality, offering a reliable, cost-effective, and eco-friendly solution for modern concrete block production.
Model :
Yixin Machinery QT8-15Machine Dimension :
9450*3600*2800Pallet Size :
940*860（MM）Cycle Time :
15-20（S）Vibration Force :
95(KN)Vated Pressure :
21（mpa）Power :
31.7(KW)Fully Set Cement Block Making Machine QT8-15
Reference video of QT8-15 cement block making machine
The QT8-15 Extend type integrates high-efficiency vibrotechnique for faster forming and superior compactedness. Its enhanced vibration system ensures rapid, uniform material consolidation, reducing cycle time while boosting block density. This technology minimizes void content, producing stronger, more durable blocks. The extended design accommodates higher production volumes without compromising stability.
Production Data
| Block Type | Specification（mm） | Qty/Palllet | Qty/Hour | Qty/Hours |
| Hollow Block | 400*200*200 | 8 | 1440 | 11520-15360 |
| Solid Block | 240*115*53 | 42 | 10080 | 60480-80640 |
| Holland Block | 200*100*60 | 28 | 5040 | 40320 |
| Zigzag Block | 225*112.5*60 | 24 | 4320 | 34560 |

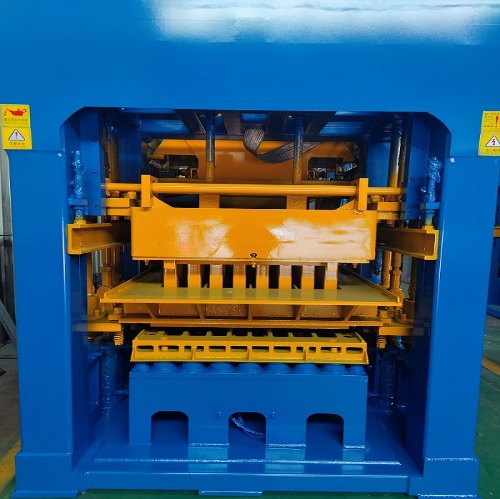

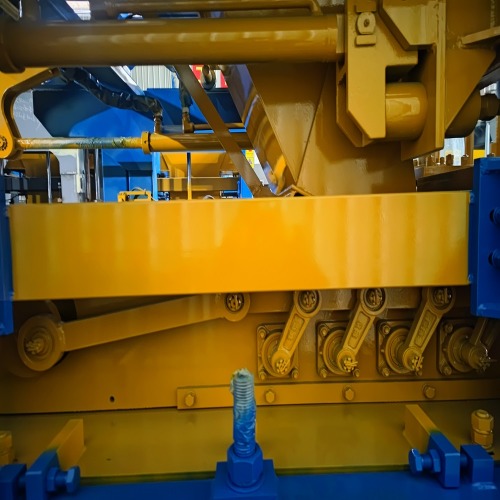

Product Detail
Block Display

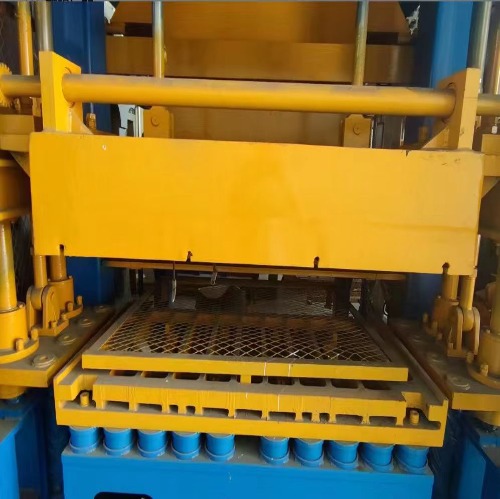

The QT8-15 features a high-heat treatment technology that significantly enhances mould durability and structural firmness. By subjecting key components to extreme thermal processing, the material's grain structure is refined, increasing hardness and resistance to wear, cracks, and deformation under heavy cycling. This results in a more robust mould that maintains precise block dimensions over extended production runs.
Exhibition Experience
The QT8-15 fully automatic cement block making machine can be equipped with an optional second materials device. This upgrade enables production of all types of color paving blocks. By adding a second layer of colored or surface material, the machine creates durable, aesthetically pleasing pavers without compromising strength.
| FAQ |
|
1.How long does the product production cycle typically take? Fully Set Cement Block Making Machine QT8-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements. |
|
2. How many days to change vibration box oil ,what kind of oil can be used inside? The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil. |
|
3.What are the raw materials used in the production process of Yixin Machinery Fully Set Cement Block Making Machine QT8-15? The raw materials utilized in the production process of Fully Set Cement Block Making Machine QT8-15primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What is the estimated date of shipment for the Fully Set Cement Block Making Machine QT8-15 after mold confirmation? The estimated date of shipment for the Fully Set Cement Block Making Machine QT8-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications. |
|
5. Can the Fully Set Cement Block Making Machine QT8-15 be equipped with an additional device to produce various types of colored paving blocks?
Yes, the Fully Set Cement Block Making Machine QT8-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks. |
