Heavy Duty Factory Custom Material Floor Wall Block Manufacturing Machine QT12-15

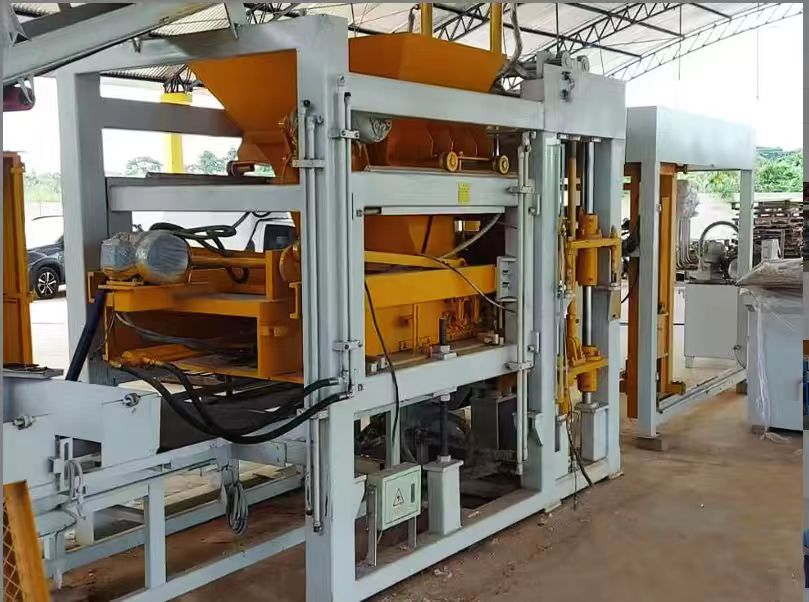

The Yixin Machinery QT12-15 Heavy Duty Block Manufacturing Machine is a high-performance, factory-customized solution designed for efficient production of floor and wall blocks. Engineered with robust construction using Q235 and Handox steel, it ensures durability and reliable operation. The machine features advanced PLC control and hydraulic pressure technology, enabling precise material optimization and high-density block formation. With a molding cycle of 15-25 seconds, it achieves rapid output for residential, commercial, and infrastructure projects.
Model :
Yixin Machinery Heavy Duty QT12-15Machine Dimension :
12800*3700*2800(MM)Pallet Size :
1350*880(MM)Cycle Time :
15-25(S)Vibration Force :
109(KN)Vated Pressure :
21(MPA)Power :
71(KW)Heavy Duty Factory Custom Material Floor Wall Block Manufacturing Machine QT12-15
Reference video of Heavy Duty Factory Custom Material Floor Wall Block Manufacturing Machine QT12-15:
The QT12-15 is a heavy-duty floor and wall block manufacturing machine that supports factory custom material formulations. Featuring an advanced hydraulic system and intelligent PLC control, it ensures precise shaping, uniform density, and excellent structural strength for both floor and wall blocks. Its robust construction and high vibration force deliver reliable performance for continuous operation. Quick mold change enables flexible production of various block sizes. A reference video is available to demonstrate the complete manufacturing cycle, including custom material handling. Ideal for construction projects seeking heavy-duty performance, custom material flexibility, and durable floor and wall blocks.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 12 | 2376 | 19008 |
| Solid Brick | 240*115*53 | 70 | 18480 | 147840 |
| Holland Paver | 200*100*60 | 44 | 8712 | 69696 |
| Zigzag Paver | 225*112.5*60 | 32 | 6336 | 50688 |
Product Details
Block Display
The QT12-15 produces a premium range of Holland paving blocks trusted by contractors worldwide. The display showcases interlocking pavers, hexagonal tiles, herringbone patterns, and straight-edge blocks—each featuring clean edges, uniform density, and precise dimensions. Thanks to the high-frequency vibration system and synchronized demoulding, every block achieves exceptional compressive strength, low water absorption, and excellent surface finish. Available in various colors, textures, and sizes with quick mold changes, the display demonstrates the machine's versatility. These durable, weather-resistant Holland paving blocks are ideal for driveways, walkways, plazas, and urban landscaping projects across five continents.
Product Display
The QT12-15 features a practical product display system designed for clear presentation and quality inspection of finished floor and wall blocks. This system allows operators and customers to easily examine surface finish, dimensional accuracy, edge integrity, color uniformity, and structural strength before packaging. Equipped with smooth roller tables and optional adjustable lighting, it protects block surfaces while enabling thorough visual checks. The user-friendly layout supports quick sampling, quality control documentation, and buyer evaluation. Ideal for heavy-duty factory custom material production, the product display system enhances quality assurance, reduces defective output, and builds customer confidence through professional product presentation.
| FAQ |
|

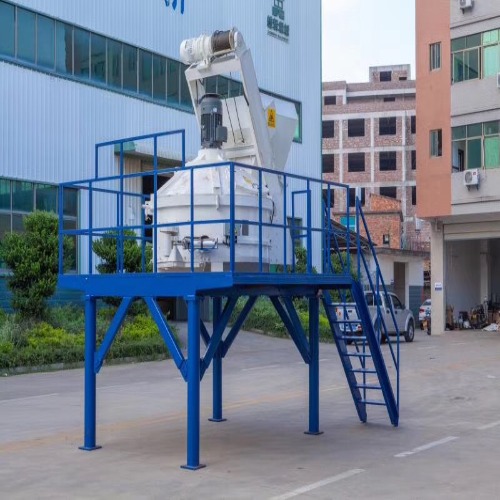

1.Does the QT12-15 include a mixer? The QT12-15 is typically paired with the JS750 or JS1000 twin-shaft concrete mixer. The JS750 has a 750-liter batch capacity (35–40 m³/hour), while the JS1000 has a 1000-liter capacity (50–60 m³/hour). Both feature wear-resistant manganese steel liners, dual horizontal shafts with spiral blades, and hydraulic or pneumatic discharge. |
|
2.What type of demould synchronization does it have? The QT12-15 features a precision demould synchronization system using dual hydraulic cylinders with proportional control valves. This ensures the mold carriage rises evenly on both sides, preventing block distortion, edge chipping, or surface damage during ejection. Demould speed is adjustable for different block heights and material compositions. |
|
3.Can you provide remote training and support? Yes. We offer live video training sessions before shipment and after installation. Our technical team is available 24/7 for video calls to guide your operators through any procedure. The PLC system also supports remote diagnostics, allowing our engineers to troubleshoot issues from our office. |
|
4.Does it include a batching plant? Yes. The QT12-15 is commonly integrated with the PL1200 or PL1600 batching machine for accurate weighing and feeding of aggregates and cement. The batching plant features multiple bins (2, 3, or 4), precision load cells (±2% accuracy), a skip hoist, and a vibration motor for smooth material flow. |
|
5. Is after-sales service available internationally? Yes, we have a global after-sales service network. We provide remote technical support, video troubleshooting, and on-site service arrangements when necessary. Spare parts can be shipped internationally with fast delivery options. |
