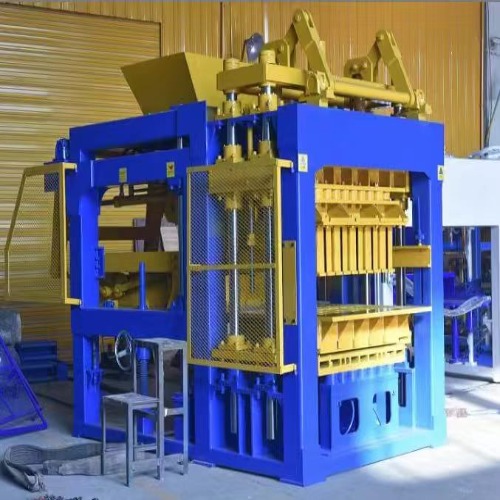

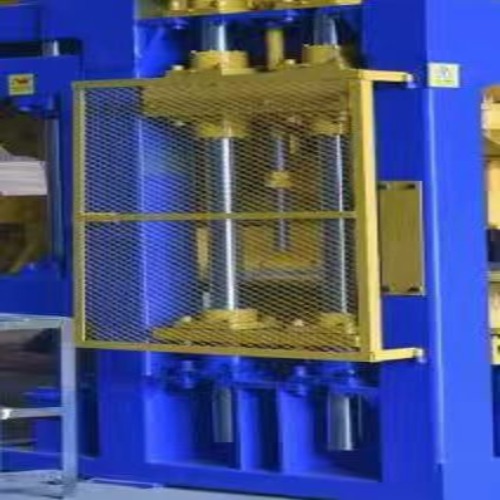

The QT15-15 Block Making Machine is a powerful and efficient piece of equipment designed to produce high-quality concrete blocks. With its advanced technology and automated features, this machine can manufacture a large quantity of blocks in a short period of time, making it a valuable asset for any construction project.
Model :
Yixin Machinery QT15-15Machine Dimension :
11500*4750*2800(MM)Pallet Size :
1350*1100(MM)Cycle Time :
15-20(S)Vibration Force :
109(KN)Vated Pressure :
21(MPA)Power :
64(KW)Intelligent Interlocking Block Making Machine QT15-15
Reference video of Intelligent Interlocking Block Making Machine QT15-15:
This reference video showcases the QT15-15, an intelligent, high-performance machine engineered for producing interlocking blocks used in erosion control, retaining walls, and eco-friendly construction. Featuring a smart PLC control system with HMI touchscreen, it enables precise parameter adjustment, automated cycle management, and real-time diagnostics. The heavy-duty servo vibration system ensures superior compaction for dense, dimensionally accurate blocks.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 15 | 2700 | 20000-23000 |
| Solid Brick | 240*115*53 | 84 | 20160 | 120000-140000 |
| Holland Paver | 200*100*60 | 55 | 9900 | 79200 |
| Zigzag Paver | 225*112.5*60 | 40 | 7200 | 57600 |
Product Details

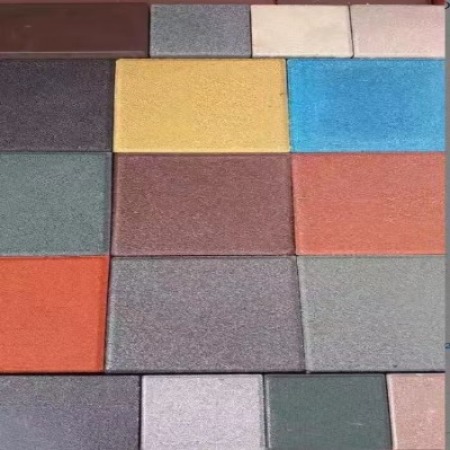

Block Display

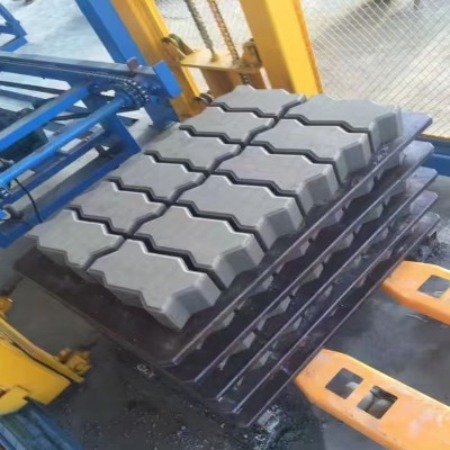

The QT15-15 produces a superior range of interlocking blocks ideal for slope protection, retaining walls, and eco-friendly pavements. Each block features precise interlocking edges, consistent dimensions, and exceptional density thanks to the intelligent servo vibration system. Available in multiple designs including I-shape, double-T, and curved patterns, these blocks assemble quickly without mortar, reducing installation time and cost. Blocks exhibit high compressive strength, low water absorption, and excellent freeze-thaw resistance.
Product Display

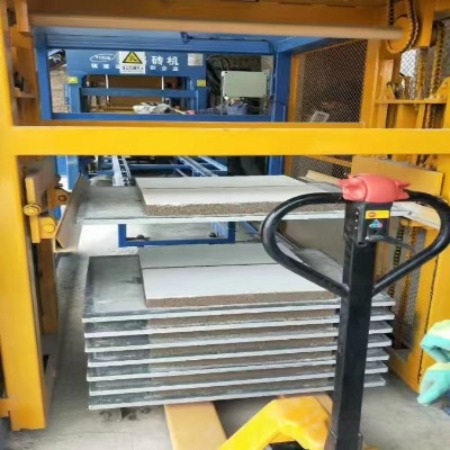

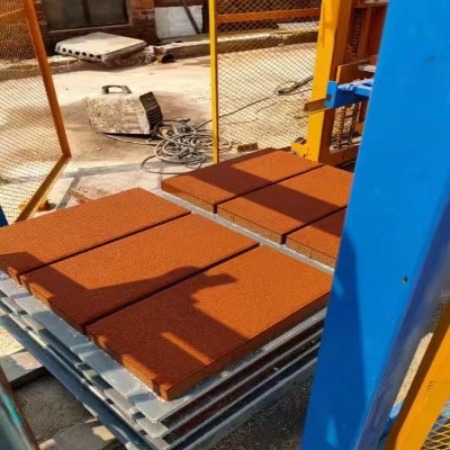

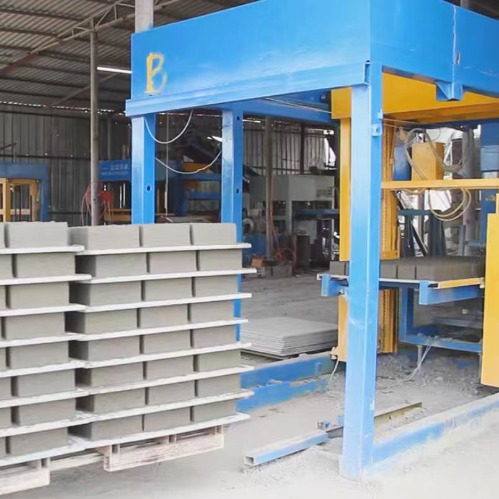

The QT15-15 product display showcases the machine's outstanding output range and quality. Featured prominently are interlocking blocks in various designs—I-shape, double-T, curved, and custom patterns—each exhibiting precise edges, uniform density, and excellent surface finish. Also displayed are hollow blocks, solid bricks, and paving stones, demonstrating the machine's versatility through quick mold changes. The display highlights how the QT15-15 enables manufacturers to produce high-value interlocking and masonry products for erosion control, retaining walls, and modern construction.
| FAQ |
|
1.What training is included? Operator training on machine operation, maintenance, troubleshooting, and safety procedures. |
|
2.Are wear parts readily available? Yes, we stock molds, vibration motors, hydraulic seals, and other wear parts for immediate shipment. |
|
3.What is stacking machine power？ 3（KW）. |
|
4.Can molds be customized? Yes. Provide drawings, samples, or photos, and our engineers will design molds to your exact specifications. |
|
5.What is the lead time? 20–25 working days after deposit confirmation. Sea freight takes 20–40 days depending on destination. |
