Professional Service Concrete Fly Ash Block Manufacturing Machine QT9-15
Professional Service Concrete Fly Ash Block Manufacturing Machine QT9-15 is a state-of-the-art machine designed to produce high-quality hollow blocks with precision and speed. Its advanced hydraulic system and efficient design make it a top choice for businesses looking to maximize their production output.
Model :
Yixin Machinery QT9-15Machine Dimension :
9800*4050*2800(MM)Pallet Size :
1350*720(MM)Cycle Time :
15-20(S)Vibration Force :
105(KN)Vated Pressure :
21(MPA)Power :
45.2(KW)Professional Service Concrete Fly Ash Block Manufacturing Machine QT9-15
Reference video of Professional Service Concrete Fly Ash Block Manufacturing Machine QT9-15:
This reference video showcases the QT9-15, a professional-grade block machine engineered for high-output production using concrete and fly ash materials. Designed to maximize industrial waste utilization, it produces durable hollow blocks, solid bricks, and pavers with exceptional strength and consistency. The high-frequency vibration system and PLC auto control ensure superior compaction, fast cycle times, and energy efficiency.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 9 | 1620 | 12500-17000 |
| Solid Brick | 240*115*53 | 50 | 12000 | 85000-95000 |
| Holland Paver | 200*100*60 | 33 | 5940 | 47520 |
| Zigzag Paver | 225*112.5*60 | 28 | 5040 | 40320 |
Product Detail

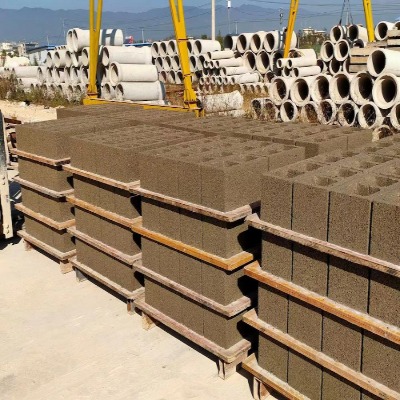

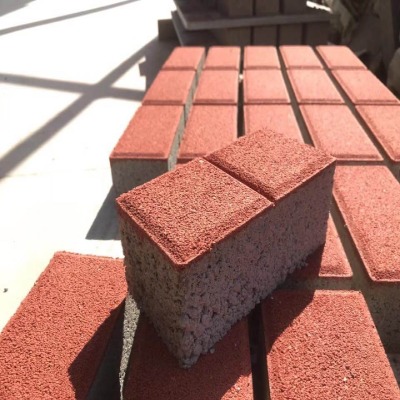

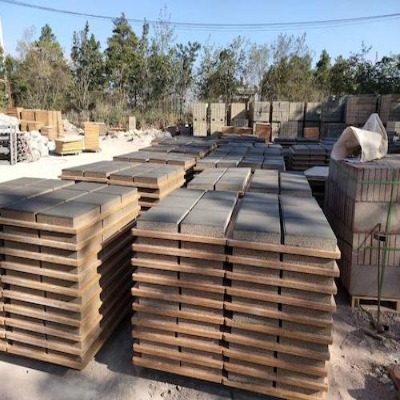

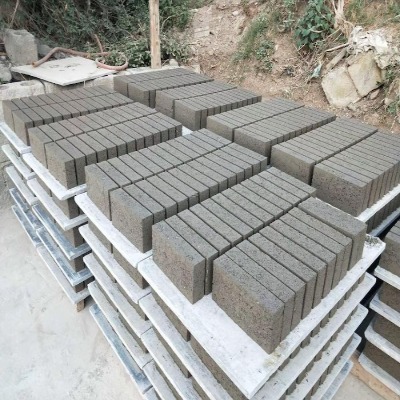

Block Display
Engineered for high-performance block production, the QT9-15 delivers exceptional versatility and quality. Using concrete and fly ash materials, it produces a wide range of products including hollow blocks, solid bricks, paving stones, and curb stones with consistent strength and dimensional accuracy. The high-frequency vibration system combined with PLC automatic control ensures superior compaction, rapid cycle times, and energy efficiency. Built for 24/7 industrial operation, the QT9-15 is the ideal solution for manufacturers seeking reliable, eco-friendly block production backed by professional service support from installation to after-sales care.

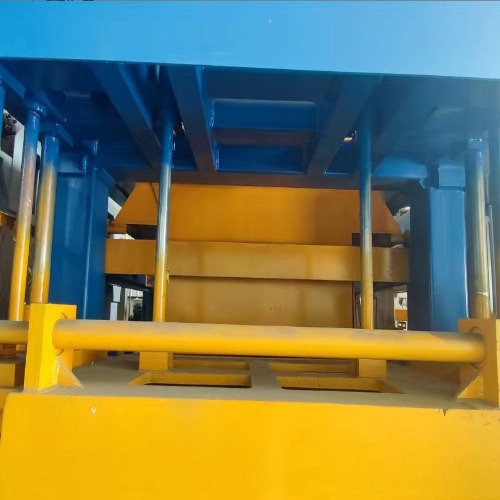

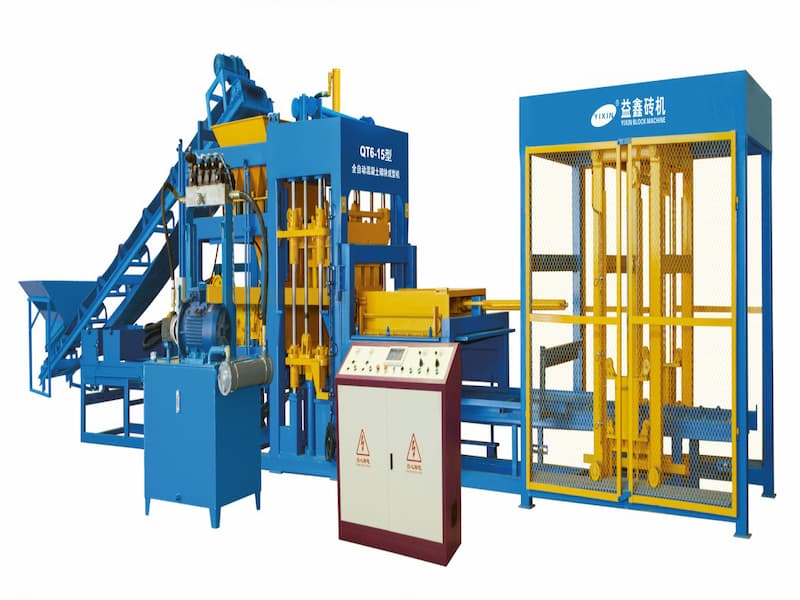

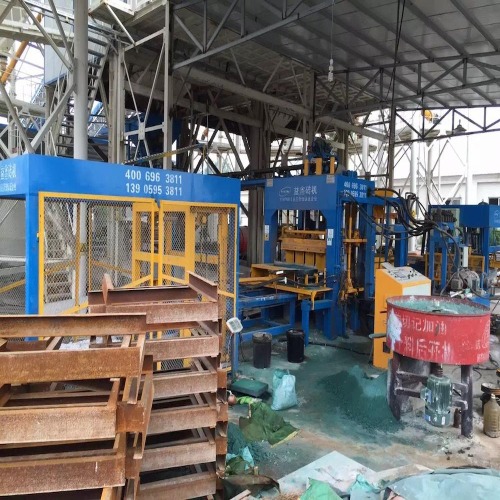

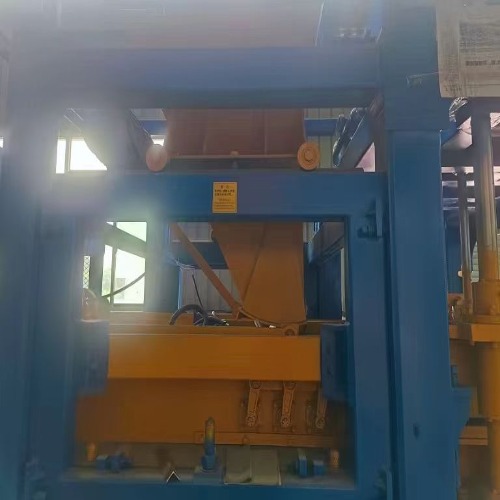

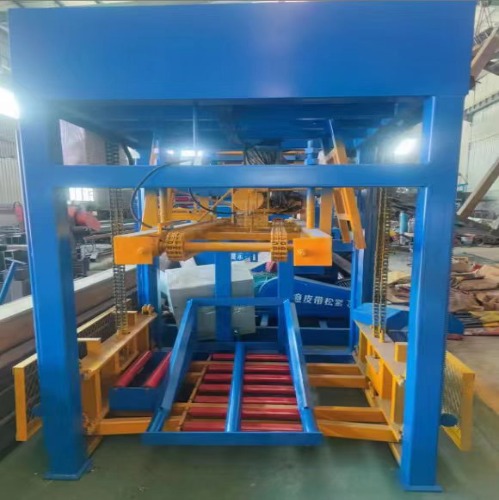

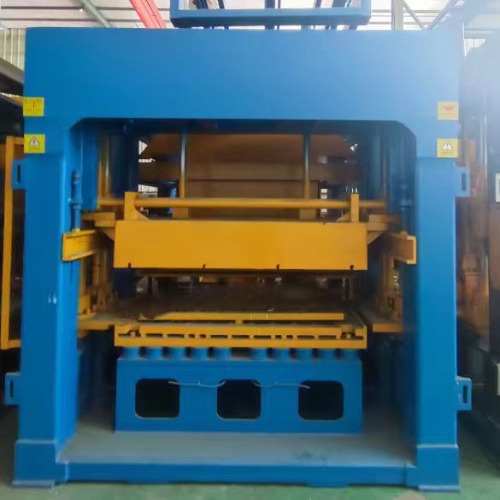

Product Display

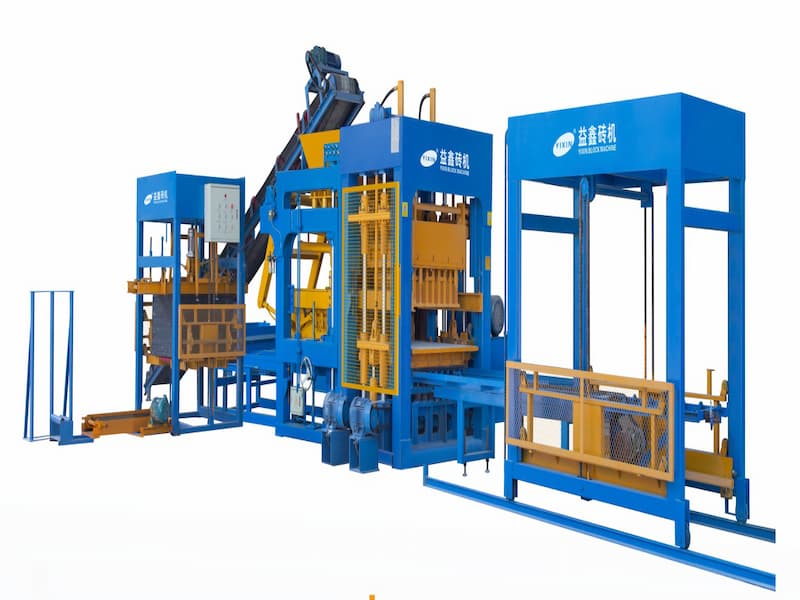

The QT9-15 is a professional-grade block making machine designed for high-efficiency production using concrete and fly ash materials. This fully automatic system features a high-frequency vibration unit, PLC intelligent control, and a robust hydraulic system to deliver superior block compaction, consistent density, and excellent surface finish. Capable of producing hollow blocks, solid bricks, pavers, and curb stones, the QT9-15 maximizes material utilization while reducing waste.
| FAQ |
|
1.How long does installation take? Installation and commissioning typically take 7–10 days with our engineer on-site. |
|
2.What professional services are included? We provide installation guidance, operator training, commissioning support, spare parts supply, and ongoing technical assistance. |
|
3.What vibration system does it use? It utilizes a high-frequency servo vibration system combined with hydraulic pressing for superior compaction and consistent block density. |
|
4.Is the machine fully automatic? Yes, the QT9-15 features a fully automatic PLC control system with HMI touchscreen for one-touch operation, recipe storage, and real-time monitoring. |
|
5.What materials can the QT9-15 process? The QT9-15 is designed for concrete and fly ash mixtures, as well as crushed stone, sand, cement, and industrial waste materials like slag or bottom ash. |
