Professional Technology Main Equipment Of Heavy Duty Making Road Paver Blocks QT15-15
This equipment features a selectable servo frequency modulation drive control system, enabling rapid vibration start and significantly shorter molding cycles. The advanced servo technology ensures precise frequency adjustment, resulting in more accurate control over block density and consistency. Ideal for producing road paver blocks, the system enhances production efficiency while reducing energy consumption. Its quick response and stable performance support continuous operation, delivering high-quality output with minimal maintenance requirements for professional manufacturing environments.
Model :
Yixin Machinery HD15-15Machine Dimension :
12800*4500*2800Pallet Size :
1350*1100(MM)Cycle Time :
13-25(S)Vibration Force :
120(KN)Vated Pressure :
21(MPA)Power :
93(KW)Professional Technology Main Equipment Of Heavy Duty Making Road Paver Blocks QT15-15
Reference video of HD15-15 road paver block makming machine
The dynamic and static vibration table ensures high-density block formation by combining dual vibration systems. The durable bar, cast vibration box, and synchronized vibration shaft work together to deliver uniform, powerful force directly to the mould. This design guarantees consistent compaction, reduced voids, and excellent structural strength in road paver blocks. The system supports both instant dynamic vibration for fast shaping and sustained static vibration for surface finishing, resulting in superior product quality, longer mould life, and reliable performance under continuous industrial operation.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 15 | 2750 | 22000 |
| Solid Block | 240*115*53 | 84 | 20625 | 165000 |
| Holland Paver | 200*100*60 | 55 | 10890 | 87120 |
| Zigzag Paver | 225*112.5*60 | 40 | 7920 | 63360 |
Product Detail

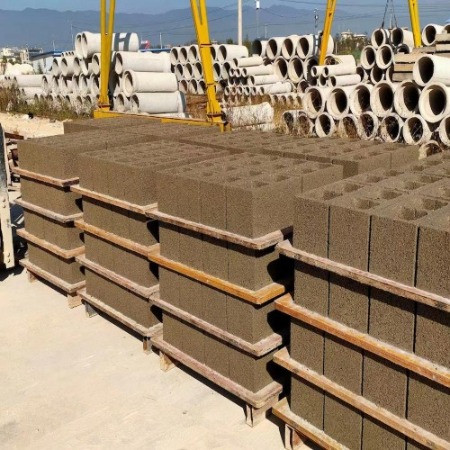

Block Display
This professional block making machine uses a Germany brand Continental airbag with a precise pressure control system. The airbag delivers extra dynamic force to the mould frame during brick production, enhancing compaction density and product quality. Operators can easily change and fix moulds without heavy tools, reducing downtime. The system improves efficiency, ensures consistent block strength, and simplifies maintenance, making it ideal for producing road paver blocks in demanding environments.
Exhibition Experience
The demolding system of this professional technology main equipment for making road paver blocks operates with enhanced speed and stability. It reduces cycle time significantly while ensuring consistent block release without surface damage or cracking. The advanced mechanism maintains precise control during separation, minimizing vibration and alignment errors. This leads to smoother production flow, lower rejection rates, and improved operational safety. Faster demolding allows higher output per hour, and the stable action protects mold integrity over extended use. Overall, it delivers reliable performance for high-volume block production lines.
| FAQ |
|
1.What types of products can be produced using Professional Technology Main Equipment Of Making Road Paver Blocks? Professional Technology Main Equipment Of Making Road Paver Blocks can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks. |
|
2. What is the production capacity of the Professional Technology Main Equipment Of Making Road Paver Blocks? This machine can produce up to 2750 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs. |
|
3.What are the raw materials used in the production process of Professional Technology Main Equipment Of Making Road Paver Blocks, and can it incorporate industrial waste materials? The raw materials utilized in the production process of Professional Technology Main Equipment Of Making Road Paver Blocks primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What are the payment terms?
The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods. |
|
5. How automated is the system? Do I need a lot of skilled workers to operate it? The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training. |
